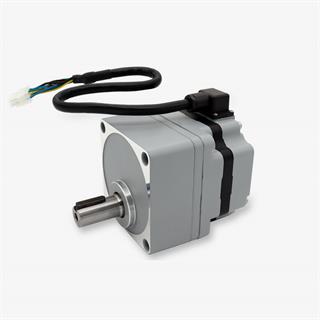

High Voltage Brushless DC with Gearbox



Code

Flange

Rated voltage
[Volt]

Rated current
[A/ph]

Rated torque
[Ncm] min.

Power [W]

Length [mm]

Feedback

Protection
class

MT31ZBVH120M3G3NEMA 31 - 80 mm square220 AC2.0038.212054no IP54
MT36ZBVH120M3G1NEMA 36 - 90 mm square220 AC1.2038.212050.5 IP54
MT36ZBVH120M3G6NEMA 36 - 90 mm square220 AC1.2038.212050.5 IP54
MT36ZBVH200M3G3NEMA 36 - 90 mm square220 AC2.0063.720054.5 IP54
