Permanent Magnet


Code
Flange
Bipolar holding
torque
[Ncm] min.

Step angle
Rated current
[A/ph]

Wires number
Depth
[mm]

Shaft
Rotor inertia
[g.cm²]

Class protection
[°]
± [%]

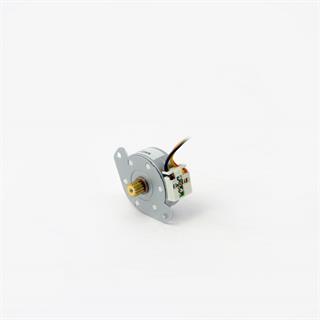

MT14AJ06005M402NEMA 1.4" - Ø35 mm round3.707.5050.504 wires for bipolar connection15.50Single shaft with pinion2.8IP30

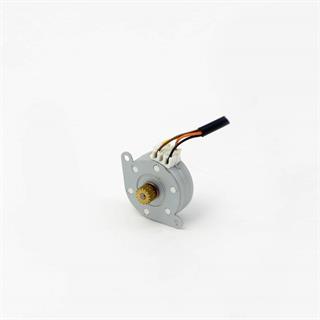

MT14AJ06008M4NEMA 1.4" - Ø35 mm round3.607.5050.414 wires for bipolar connection15.50Single shaft with pinion4.8IP30

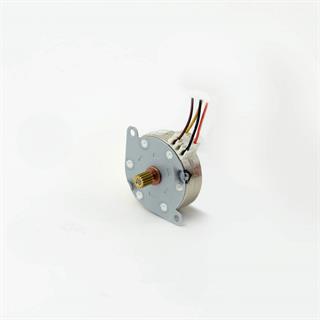

MT17AJ06003M401NEMA 1.7" - Ø42 mm round3.707.5050.314 wires for bipolar connection15.50Single shaft with pinion10.3IP30

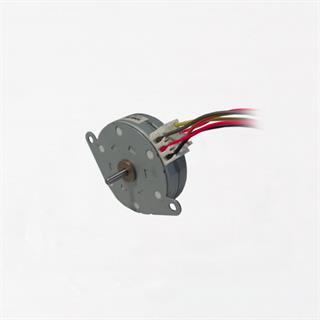

MT17AJ06003M601NEMA 1.7" - Ø42 mm round5.607.5050.346 wires for unipolar or bipolar series connection15.50Single shaft7.3IP30

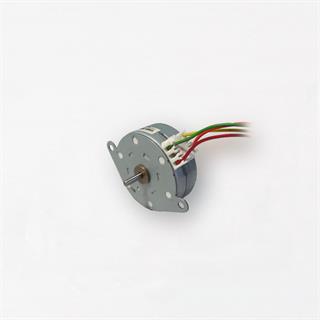

MT17AJ09003M401NEMA 1.7" - Ø42 mm round6.807.5050.354 wires for bipolar connection22.20Single shaft23.6IP30
