SM5A485PC023AM0c0380

Flange NEMA 34 - 86 mm x 86 mm
Rotor inertia 1300 [g.cm²]
Power supply voltage 18 [Vac] ÷ 100 [Vac]
Separated logic power supply 24 [Vcc] ÷ 24 [Vcc]
Bipolar holding torque 340 [Ncm] min.
Output current 0.0 [A/ph rms] ÷ 8.5 [A/ph rms] 0.0 [A/ph peak] ÷ 12.0 [A/ph peak]
Control mode CANBus CANopen (DS402)
Power stage H-bridge bipolar 40 kHz ultrasonic chopper
Digital inputs 4 optoisolated
Digital outputs 3 optoisolated
Open or Close loop Closed loop
Step resolution Stepless Control Technology (65536 emulated positions per turn)
Safety protections Over/under-voltage, Over Current, over Temperature, short circuit phase/phase and phase/ground
Operative temperature 5 [°C]÷ 40 [°C]
Storage temperature -25 [°C] ÷ +55 [°C]
Humidity 5 [%] ÷ 85 [%]
Dimensions H x L x W 135.0 [mm] x 86.0 [mm] x 126.0 [mm]
Weight 2.70
Protection class IP65

Feedback

Feedback Incremental encoder + absolute single-turn

Functions

Ever co. proprietary PC Software Tools for easy and quick configuration or programming, real time debug and supervision of each system

Wide range of Positioning Control Modes (homing, relative, absolute, target) and autonomous management of the firmware for the execution of the homing, of the target movement with relative or absolute quota and for the generation of the ramp profiles

Torque mode for operation with torque limitation

Speed control thanks to digital inputs or fieldbus

Electronic CAM with advanced programming of internal profiles inside the drive

Electric shaft with encoder or analogue input with variable tracking ratio (Electric Gear)

Fast inputs and outputs for motor’ start & stop and event synchronization for high speed response applications such as labeling, nick finder, flying saw etc.Possibility to synchronize the movements in multiaxis systems, even without fieldbus

Enabling and on-the-fly changing of the motion control modes

Drive control through commands by Master Controller. Suitable for multi axes systems (up to 25 drives). Built in Powerfull Motion Module functionality assures perfect synchronization between axes and reduces master controller workload

Main Features

● Vectorial control

● IP65 protection class

● AC power supply

● Compact size

● Low mechanical noise and low vibrations

● Stepless control technology

● Closed loop of torque, speed and position with incremental and absolute single turn encoder

The SM series of high performance and local logic vector drives suitable to be connected via CANbus (CANopen DS301/DS402), or serial (Modbus-RTU) to single or multi-axle systems in slave mode. Consisting of a Full Digital vector drive with "Else" firmware and a high torque 50-pole NEMA34 motor and an incremental and absolute single turn encoder for closed loop control. Quickly configurable thanks to the interface for PC Windows Ever Studio, these units are available in a wide range of powers. The SM5A series, as well as combining compactness and power, offers maximum versatility and reliability, allowing considerable savings in wiring and electrical panels. With the hardware resources available in the different versions, together with the implementation of the Advanced Power Motion Module, you can operate your application in a quick and easy manner.

   CONNECTORS KIT

 Code       Description
 SM5A4KIT-C0Connectors kit for cabling
 SM5A4KIT-100Connectors kit with 1 mt. cables

   SOFTWARE KITS FOR CONFIGURATION

 Code       Description
 SM5_CAN-00      Software kit for drive configuration with Ever Studio + 200 cm. serial cable with serial/USB converter


Motors with Integrated Electronics > Smart Stepper Motors > Fieldbus > SM5A485PC023AM0c0380
Technologies

Ever Elettronica has been one of the first companies in the world to implement and validate the CANopen protocol and the DSP402 on its drives for stepper motors and brushless motors, starting from the early ‘90s.

Functionalities

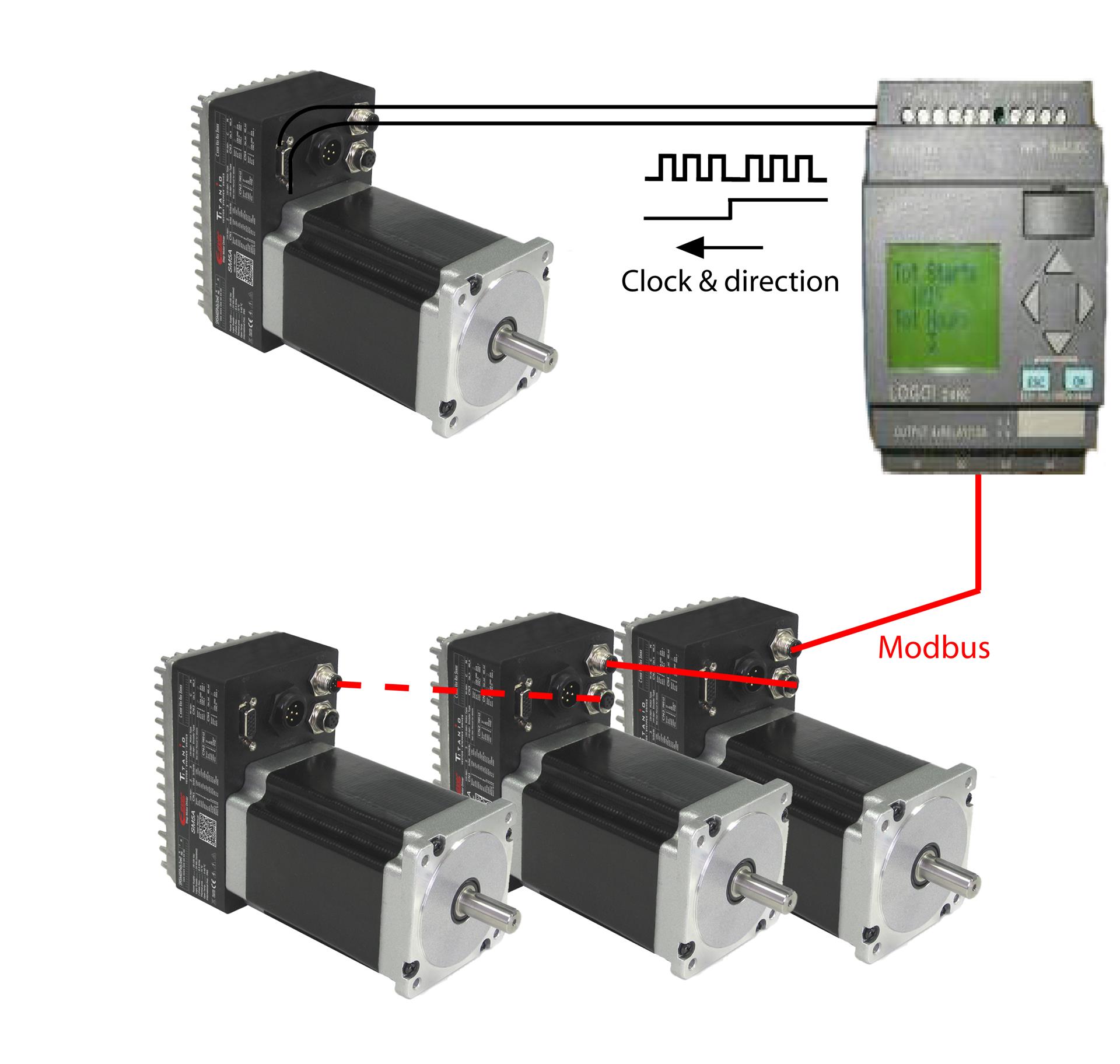

Drive control through fieldbus or digital signals by master controller (PLC).

Connection/Control

Connection for the parameters configuration is made through frieldbus interface and the software tool Ever Studio that allow easy and quick configuration, a real time debug and a supervision of each system.

Motors with Integrated Electronics > Smart Stepper Motors > Fieldbus > SM5A485PC023AM0c0380

Mechanical drawing

Dimensions in mm
