IMPW21H0c1000

Main characteristics:

√ Easy programmable
√ Local control of connected devices
√ Execution speed and real-time axles management
√ Data exchange between field busses (Modbus TCP/IP -----> EtherCAT -----> CANopen)
√ Integrated WebServer functionality

Description:

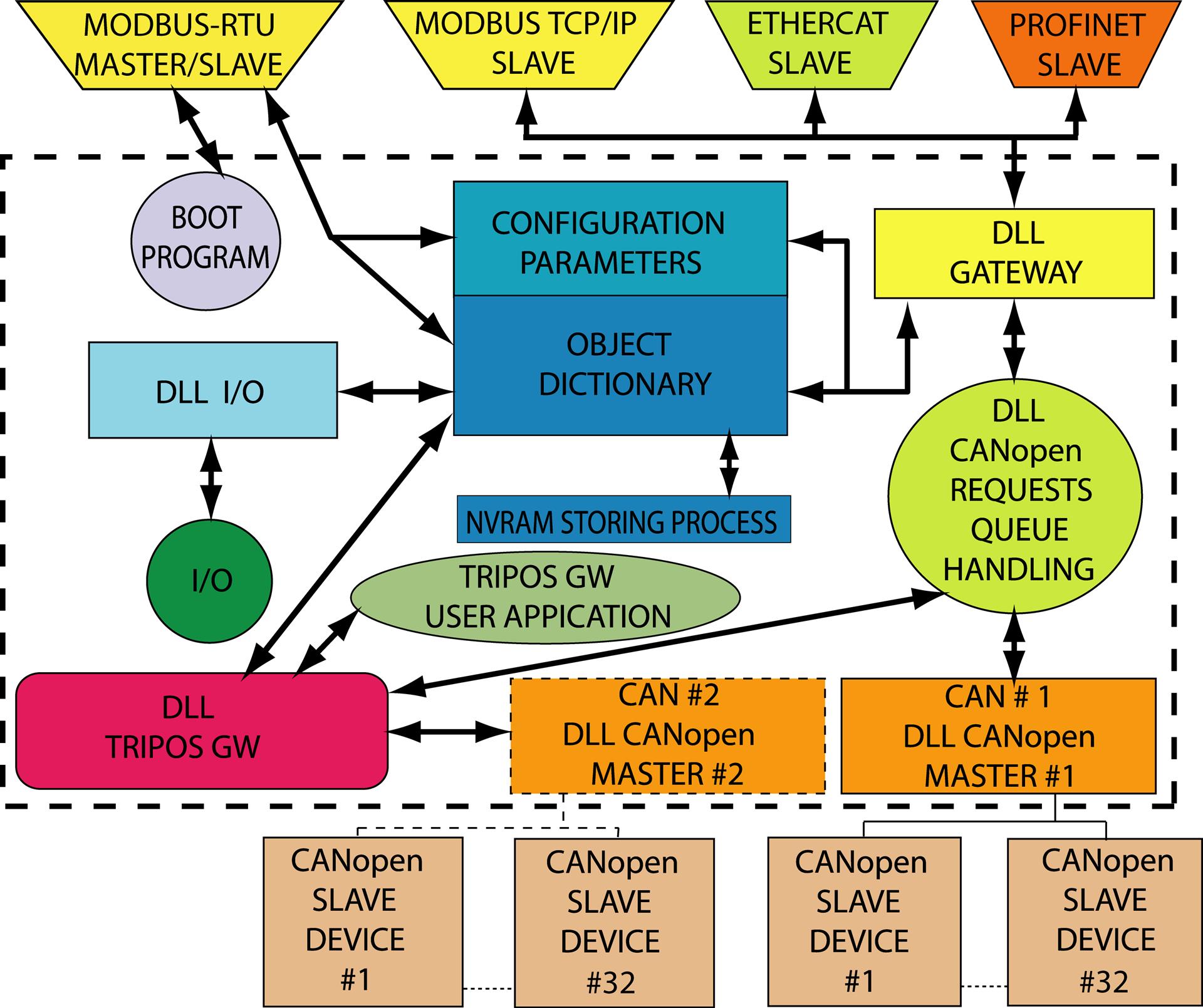

The IMP unit has been developed to cover the three control functions of Programmable Logic Controller (PLC), motion controller and communication converter (gateway). By means of the programmable logic controller and motion controller functions, the user can control a process through the fieldbus, serial interface and the inputs/outputs, using his own program. The communication converter function enables the data exchange between different field busses: Modbus TCP/IP, CANBus (Canopen), EtherCAT and Modbus-RTU. The coexistence of the three functions in a single unit, simplify the automation of a wide range of industrial applications in a simple way, offering an important economic advantage.


Technical specification:

- Power supply: 24 Vdc (nominal range 19 ÷ 30 Vdc)
- Current: 500 mA max
- CPU processor: ARM® CORTEX®-M7 32-bit MCU
- PLC and motion control programming: TR.I.P.O.S.GW compatible with Windows OS (EN61131-3 ST)
- Memory user program: 1024K FLASH and 512K SRAM
- Interfaces: - CANbus: 1 electrically isolated, 1 Mbit/s, ISO11898
                           - Ethernet: 1 Modbus TCP/IP 100BASE-TX port
                           - EtherCAT: 1 port
                           - Serial: Modbus-RTU RS485 electrically isolated
- Inputs: 8 electrically isolated, 5 ÷ 24 Vdc PNP
- Output: 8 protected and electrically isolated, 24 Vdc
- Dip switches: 8 for user configuration
- Display: 7 segments leds display indicating the unit operational status
- Temperature: operative  5°C ÷ 40°C
- Humidity: 0% ÷ 90%
- Protection degree: IP20
- Dimensions (H x D x W): 194,0 x 116,0 x 40,0 mm

   CONNECTORS KIT

 Code       Description
 IMPWKIT-C00                                        Connectors kit for cabling

   SOFTWARE KIT FOR CONFIGURATION

 Code       Description
 IMP_SERV10_TRP      Kit for programming the unit with T.R.I.P.O.S.GW software

Multifunction controller > Gateway, Controller and PLC > IMPW21H0c1000
Technologies

To best respond to the increasing need of being always interconnected, we developed the web server functionality for our multifunction controller IMP Unit, which allows you to be connected to your device wherever you are.

EtherCAT is a fieldbus which meet the need of a standard high performance industrial communication protocol based on an Ethernet network. EtherCAT is currently considered the fastest industrial Ethernet solution.

Modbus is a communication protocol among the most widely used standards in the world of industrial devices. All our devices equipped with a serial interface (RS232 or RS485) implement and support the Modbus RTU protocol.

The Modbus TCP/IP fieldbus, based on Ethernet hardware, was born as an evolution of the classic Modbus RTU fieldbus. Modbus TCP/IP communication protocol allows multiple masters to connect to the same slave.

Ever Elettronica has been one of the first companies in the world to implement and validate the CANopen protocol and the DSP402 on its drives for stepper motors and brushless motors, starting from the early ‘90s.

Features

Thanks to the TR.I.P.O.S.GW programming environment, it is possible to customise the machine cycle and manage all drives and local resources, reducing and simplifying the work load of the master PLC, if present.

Mechanical drawing

Dimensions in mm

Multifunction controller > Gateway, Controller and PLC > IMPW21H0c1000

Fieldbus

Multifunction controller > Gateway, Controller and PLC > IMPW21H0c1000
Multifunction controller > Gateway, Controller and PLC > IMPW21H0c1000
Multifunction controller > Gateway, Controller and PLC > IMPW21H0c1000
Multifunction controller > Gateway, Controller and PLC > IMPW21H0c1000

Related product to IMPW21H0c1000
IDE software for TR.I.P.O.S. GW. motion controllers.

IDE software for TR.I.P.O.S. GW. motion controllers.

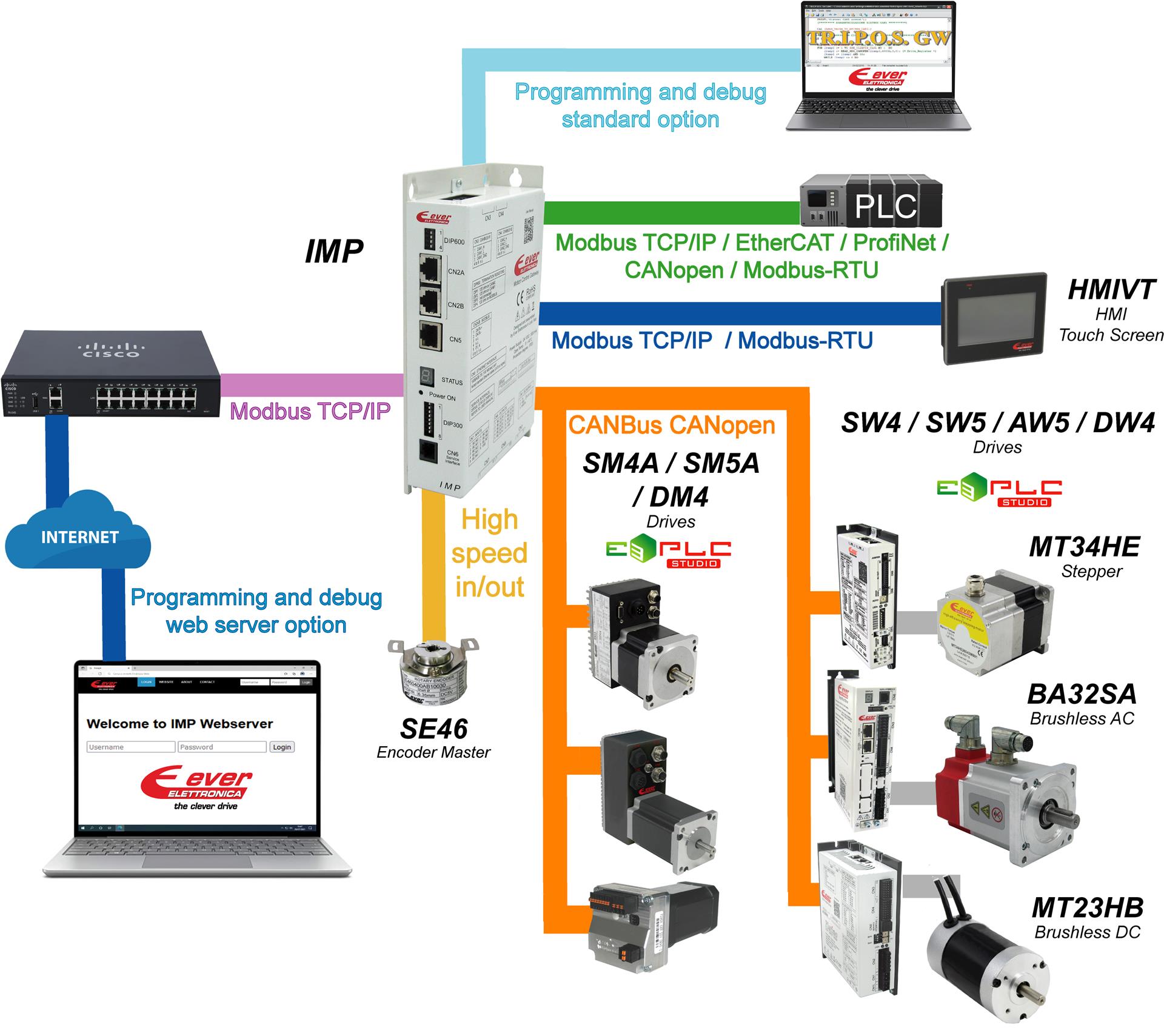

Typical Applications of IMPW21H0c1000
