Titanio



Code

Power supply voltage

Output current

Control mode

Feedback
Interface

Mounting

Digital
inputs

Digital
outputs

[Vcc]

[Vac]

[A/ph rms]

[A/ph peak]

Min

Max

Min

Max

Min

Max

Min

Max

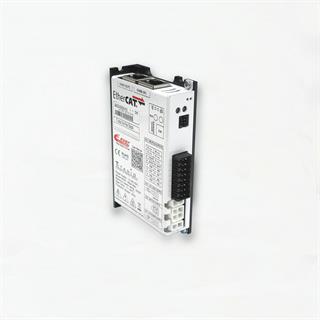

SW3D2042H241-01c06801248  0.04.20.06.0EtherCAT CoE (DS402) Wall mounting4 optoisolated digital inputs 5-24 Vdc NPN, PNP or Line-Driver 5 MHz2 optoisolated digital outputs PNP, 24 Vdc - 100 mA - 1kHz

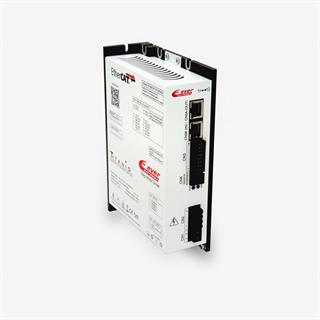

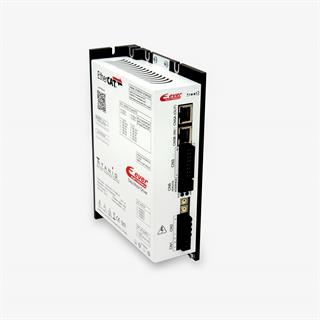

SW3A9030H241-20c0680  10024003.004.2EtherCAT CoE (DS402) Wall mounting4 optoisolated digital inputs 5-24 Vdc NPN, PNP or Line-Driver2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW3A9030H241-21c0680  10024003.004.2EtherCAT CoE (DS402) Wall mounting4 optoisolated digital inputs 5-24 Vdc NPN, PNP or Line-Driver2 optoisolated digital outputs PNP, 24 Vdc - 100 mA

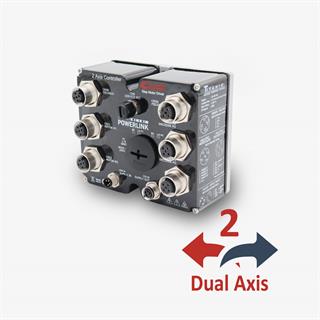

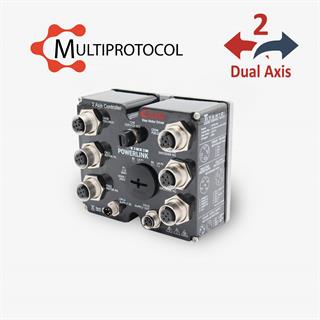

SN4D2030R202-00c0A802448  0.03.00.04.20Powerlink (Multiprotocol)1 incremental encoder not isolated input 24 V Sink for each motorWall mounting
SN4D2030R202-01c0A802448  0.03.00.04.20Powerlink (Multiprotocol)1 incremental encoder not isolated input 5V Single-Ended (TTL/CMOS)Wall mounting
SN4D2040H2L1-00c06801248  0.04.00.05.65EtherCAT CoE (DS402)incremental encoder not isolated input 5 V Single-Ended TTL/CIMOS Wall mounting2 optocoupled 2-24 Vdc digital inputs NPN, PNP or line driver 2 Mhz 2 optocoupled digital outputs PNP 24 Vdc - 100 mA

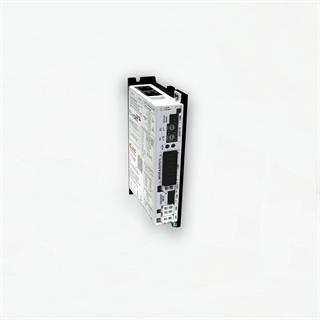

SW4D2042H241-00c06801248  0.04.20.06.0EtherCAT CoE (DS402)not isolated input for incremental encoder 5V differential RS422 or 5V single ended (TTL/CMOS)Wall mounting4 optocoupled digital inputs 2-24 Vdc NPN, PNP or Line Driver 2 Mhz 2 optocoupled digital outputs PNP, 24 Vdc - 100 mA
SW4D2042E241-00c08901248  0.04.20.06.0Ethernet Modbus TCP/IPnot isolated input for incremental encoder 5V differential RS422 or 5V single ended (TTL/CMOS)Wall mounting4 optocoupled digital inputs 2-24 Vdc NPN, PNP or Line Driver 2 Mhz 2 optocoupled digital outputs PNP, 24 Vdc - 100 mA

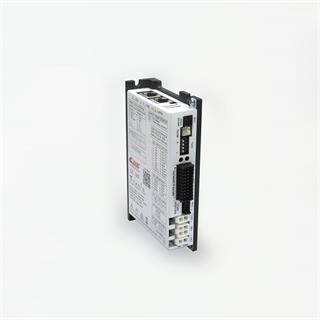

SW4D2070C231-00c03801248  0.07.10.010.0CANBus CANopen (DS402)interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA

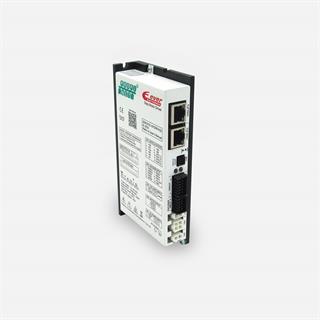

SW4D2070T241-00c09811248  0.07.10.010.0Profinet (PROFIdrive)interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS)Wall mounting4 optoisolated digital inputs 5-24 Vdc NPN, PNP or Line-Driver 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4D2070T241-02c09811248  0.07.10.010.0Profinet (PROFIdrive)interface for absolute encoder (not isolated) 5V BiSS-C or SSIWall mounting4 optoisolated digital inputs 5-24 Vdc NPN, PNP or Line-Driver 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4A3070C261-00c0380  18560.07.10.010.0CANBus CANopen (DS402)interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4A3070C261-01c0380  18560.07.10.010.0CANBus CANopen (DS402)interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + encoder output not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4A3070C261-02c0380  18560.07.10.010.0CANBus CANopen (DS402)interface for absolute encoder (not isolated) 5V BISS-C or output SSI + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4A3070M261-00c0490  18560.07.10.010.0Serial RS485 Modbus RTUinterface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4A3070M261-01c0490  18560.07.10.010.0Serial RS485 Modbus RTUinterface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + encoder output not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4A3070M261-02c0490  18560.07.10.010.0Serial RS485 Modbus RTUinterface for absolute encoder (not isolated) 5V BISS-C or output SSI + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 2 optoisolated digital outputs PNP, 24 Vdc - 100 mA

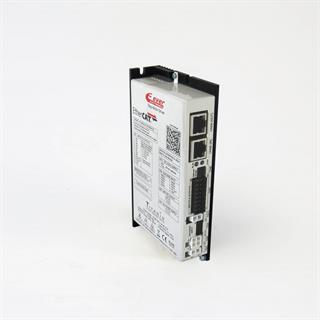

SW4A3070H241-00c0680  18560.07.10.010.0EtherCAT CoE (DS402)interface for incremental encoder not isolated 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4A3070H241-02c0680  18560.07.10.010.0EtherCAT CoE (DS402)interface for absolute encoder not isolated 5V BISS-C or SSI + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz2 optoisolated digital outputs PNP, 24 Vdc - 100 mA

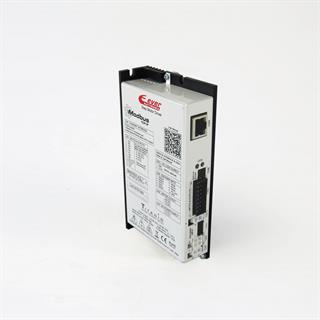

SW4A3070E241-00c0890  18560.07.10.010.0Ethernet Modbus TCP/IPinterface for incremental encoder not isolated 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz2 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW4A3070E241-02c0890  18560.07.10.010.0Ethernet Modbus TCP/IPinterface for absolute multiturn encoder not isolated 5V BISS-C or SSI + output encoder not isolated 5V Differential RS422Wall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz2 optoisolated digital outputs PNP, 24 Vdc - 100 mA

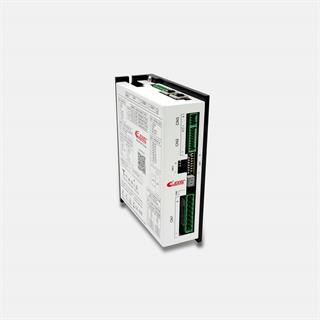

SW4A4085C261-00c0380  181000.08.50.012.0CANBus CANopen (DS402) Wall mounting4 optoisolated inputs2 optoisolated outputs

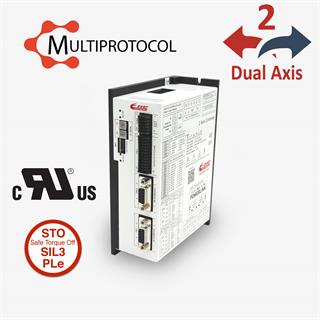

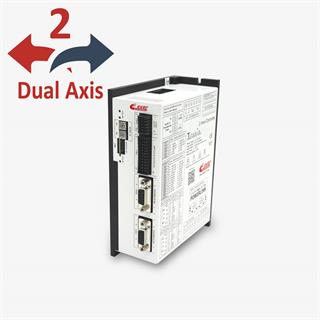

SW5D3070R4T2-30c0A802480  0.07.10.010.0Powerlink (Multiprotocol)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS)Wall mounting8 optoisolated4 optoisolated
SW5D3070R4T2-35c0A802480  0.07.10.010.0Powerlink (Multiprotocol)isolated interface for multiturn absolute encoder 5V Endat2.2, BiSS-C or SSIWall mounting8 optoisolated 4 optoisolated

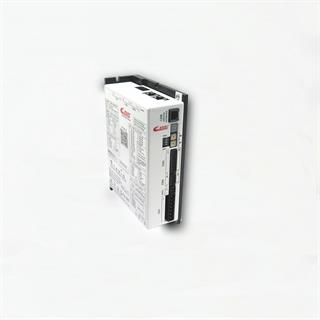

SW5A4085C2N1-00c0380  181000.08.50.012.0CANBus CANopen (DS402)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS)Wall mounting6 optoisolated inputs4 optoisolated digital outputs
SW5A4085C2G1-00c0380  181000.08.50.012.0CANBus CANopen (DS402)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS)Wall mounting16 optoisolated inputs12 optoisolated digital outputs
SW5A4085E241-00c0890  181000.08.50.012.0Ethernet Modbus TCP/IPisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS)Wall mounting4 optoisolated digital inputs2 optoisolated digital outputs
SW5A4085E2J1-00c0890  181000.08.50.012.0Ethernet Modbus TCP/IPisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS)Wall mounting12 optoisolated digital inputs10 optoisolated digital outputs
SW5A4085H241-00c0680  181000.08.50.012.0EtherCAT CoE (DS402)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS)Wall mounting4 optoisolated digital inputs 2 optoisolated digital outputs
SW5A4085T2N1-00c0981  181000.08.50.012.0Profinet (PROFIdrive)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS)Wall mounting6 optoisolated inputs4 optoisolated digital outputs

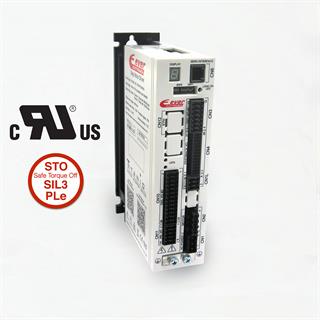

SW5A5080L221-30c0380  851200.08.00.011.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW5A5080L2E1-30c0380  851200.08.00.011.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW5A5080L2G1-30c0380  851200.08.00.011.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V differential RS422 +absolute encoder isolated input SSI or BISSWall mounting16 optoisolated inputs 2-24Vdc NPN, PNP or Line-Driver 2 MHz12 optoisolated digital outputs PNP, 24 Vdc

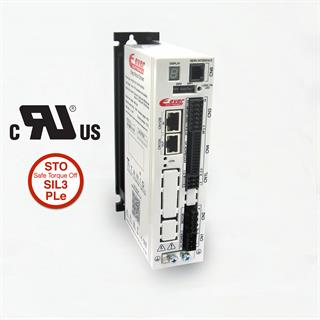

SW5A5080H221-30c0680  851200.08.00.011.35EtherCAT CoE (DS402)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA

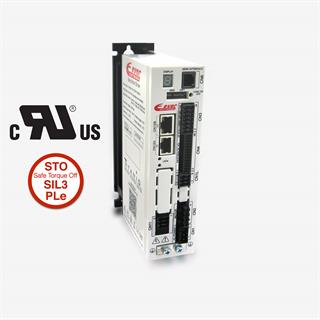

SW5A5080T221-30c0981  851200.08.00.011.35Profinet (PROFIdrive)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 3 digital optoisolated outputs PNP, 24 Vdc - 100 mA

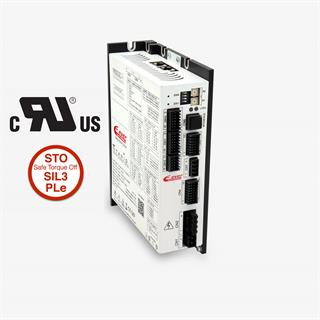

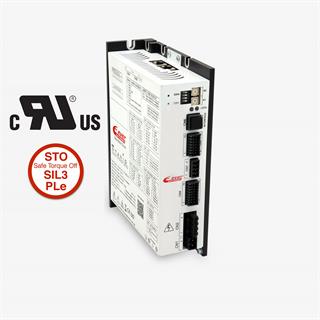

SW5A9030L221-20c0380  1002400.03.00.04.20CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + absolute encoder isolated input SSI or BISS-CWall mounting4 optoisolated digital inputs 3 optoisolated digital outputs
SW5A9030L2G1-20c0380  1002400.03.00.04.20CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + absolute encoder isolated input SSI or BISS-CWall mounting16 optoisolated digital inputs12 optoisolated digital outputs

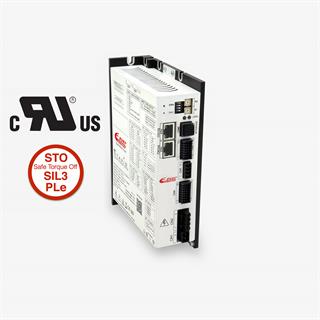

SW5A9030H221-20c0680  1002400.03.00.04.20EtherCAT CoE (DS402)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + absolute encoder isolated input SSI or BISS-CWall mounting4 optoisolated digital inputs 3 optoisolated digital outputs
SW5A9030T221-20c0981  1002400.03.00.04.20Profinet (PROFIdrive)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) + absolute encoder isolated input SSI or BISS-CWall mounting4 optoisolated digital inputs3 optoisolated digital outputs
SW5A9052L221-30c0380  852650.05.20.07.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 3 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW5A9052L221-30c0790  852650.05.20.07.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW5A9052L2E1-30c0380  852650.05.20.07.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW5A9052L2E1-30c0790  852650,05.20,07.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW5A9052L2G1-30c0380  852650.05.20.07.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V differential RS422 +absolute encoder isolated input SSI or BISSWall mounting16 optoisolated digital inputs 2-24Vdc NPN, PNP or Line-Driver 2 MHz12 optoisolated digital outputs PNP, 24 Vdc
SW5A9052L2G1-30c0790  852650.05.20.07.35CANBus CANopen (DS402) + Serial Modbusisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting16 optoisolated digital inputs 2-24Vdc NPN, PNP or Line-Driver 2MHz12 optoisolated digital outputs PNP, 24 Vdc
SW5A9052E221-30c0890  852650.05.20.07.35Ethernet Modbus TCP/IPisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW5A9052T221-30c0981  852650.05.20.07.35Profinet (PROFIdrive)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 3 digital optoisolated outputs PNP, 24 Vdc - 100 mA
SW5A9052H221-30c0680  852650.05.20.07.35EtherCAT CoE (DS402)isolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting4 optoisolated digital inputs 2-24 Vdc NPN, PNP or Line-Driver 2 MHz 3 optoisolated digital outputs PNP, 24 Vdc - 100 mA
SW5A9052E2G1-30c0890  852650.05.20.07.35Ethernet Modbus TCP/IPisolated interface for incremental encoder 5V differential RS422 or 5V Single -Ended (TTL/CMOS) +output encoder not isolated 5V Differential RS422 +absolute encoder isolated input SSI or BISSWall mounting16 optoisolated digital inputs 2-24Vdc NPN, PNP or Line-Driver 2 MHz3 optoisolated digital outputs PNP, 24 Vdc - 100 mA + 9 optoisolated digital outputs
